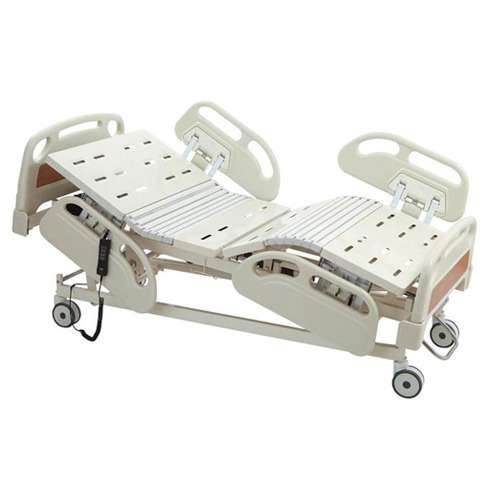

ICU Bed Electric 5 Function

ICU Bed Electric 5 Function

ICU Bed 5- function with electrically operated electrically operated back rest tilting 0-70º, knee rest tilting 0-30°, trendelenburg tilting 0-12°,Reverse trendelenburg tilting 0-12,
Outer dimensions L2220*W1060mm (±10mm)(Side rails up), Mattress platform L1960
W900mm (±10mm), Bed Height H450-790mm (±10mm), Bed extension 200mm (±10mm)
Split Guard Rails: Guard rail PP- 4pcs provides protection to patient against fall.
Angle Gauge on Side rails display the angle of back rest and Trendelenburg / Reverse Trendelenburg.
Removable mattress platform : Plastic board mattress platform can be easily removed for sterilization.
Protective corner bumpers
Noiseless Luxury castors- Dia 125mmwith Central braking system.
Provision for I.V. Rod on all sides of the bed.
Manual/Electric CPR:The Electric CPR is easy and convenient to operate with one key control. Manual CPR is equipped with damping device, which can be used single handedly and allows the back rest fall slowly to ensure the safety of the patient, in case of power failure.

Function: Five
Outer dimensions (Side rails up): L2220*W1060mm (±10mm)
Mattress platform: L1960*W900mm (±10mm)
Bed height: H450-790mm (±10mm)
Maximum backrest angle: ≥70°
Maximum thigh angle: ≥25° ≥12°
Height of side rails
(above mattress platform): 380mm (±10mm)
Safe working load: 200kgs
Weighing system    No
Bed Extension: 200mm (±10mm)
Central nurse control system: No
X-ray cassette holder: Yes, Back rest raised side insert
